CROSSLOOP, Duckboard anchor
€28108price without VAT 232.30 €
Choose a size
- Tips / formaPermanent anchors
Price includes VAT 21%.
The indicated price is valid ordering till 07.03.2026.
The indicated price is valid ordering till 07.03.2026.
CROSSLOOP, Duckboard anchor

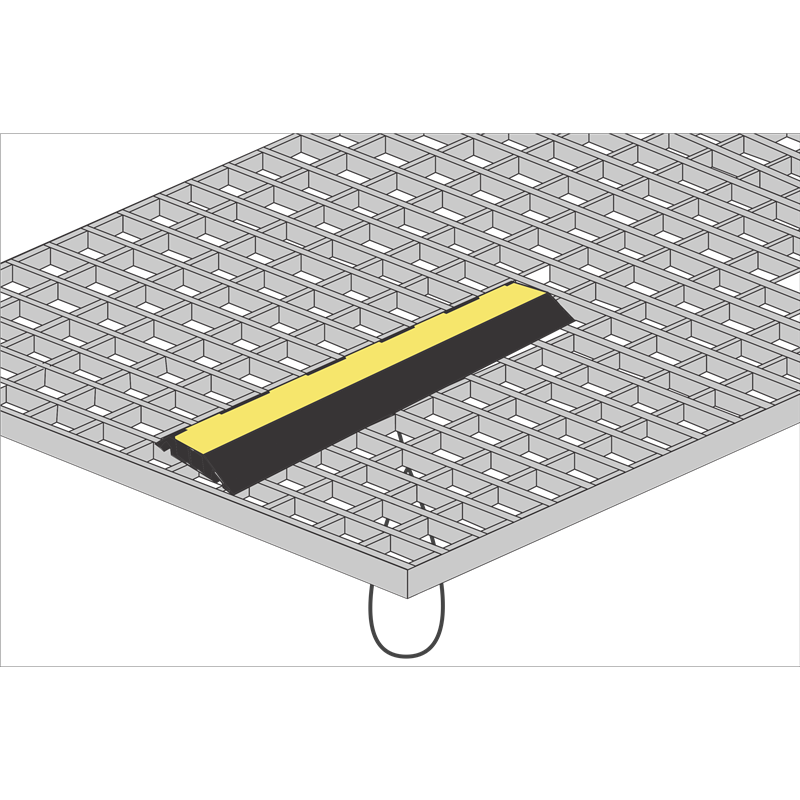

Simple, light and easy to install, it is designed to be installed on platforms, bridges, horizontal surfaces made up of pressed steel gratings, min. mesh 30 mm x 30 mm.
Always install above structural elements (picture 3) so that the length of the housing is in the direction of the bearing bars.
It is designed to be used with a fall arrest system, but can also be used with a work positioning or a restraint system.
Consists of a polymer casing with aluminium reinforced plate and steel anchorage axis, and an anchorage WIRE rope sling having thimbled loop at one end.
Provided with 3 different lengths of WIRE rope slings (250 mm / 500 mm / 750 mm), as well as with a 8.5 m long cord to facilitate installation of the fall arrest system.
Weight: 3.75 kg.
Compliance: EN 795:2012 Type B.
Static strength as per EN 795:2012: 12 kN.
Simple, light and easy to install, it is designed to be installed on platforms, bridges, horizontal surfaces made up of pressed steel gratings, min. mesh 30 mm x 30 mm.
Always install above structural elements (picture 3) so that the length of the housing is in the direction of the bearing bars.
It is designed to be used with a fall arrest system, but can also be used with a work positioning or a restraint system.
Consists of a polymer casing with aluminium reinforced plate and steel anchorage axis, and an anchorage WIRE rope sling having thimbled loop at one end.
Provided with 3 different lengths of WIRE rope slings (250 mm / 500 mm / 750 mm), as well as with a 8.5 m long cord to facilitate installation of the fall arrest system.
Weight: 3.75 kg.
Compliance: EN 795:2012 Type B.
Static strength as per EN 795:2012: 12 kN.
Parameters
| Color | - |
| Height | - |
| Material | - |
| Weight | 3,75 |
| Width | - |
