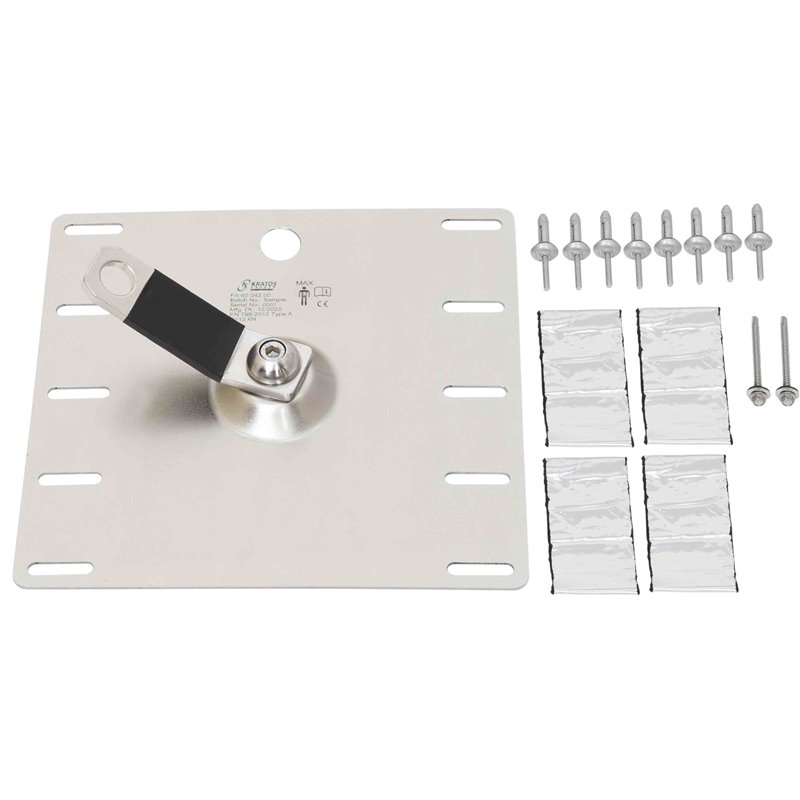

KORI - Anchorage plate with swivel for trapezoidal roof sheet

Anchorage plate designed to be installed on trapezoidal roof sheets fixed on a trapezoidal roof sheet where the user needs to move around the anchorage to carry out their work.
To be fixed directly onto the purlin with the fasteners (pop rivets and steel timber tek screws) supplied.
Comes with EPDM waterproofing strips.
Swivel anchor eye with integrated energy absorber at the center of the plate.
Compatible with pitches from 200 mm to 260 mm on trapezoidal sheet.

Material: Stainless steel
Weight: 2.00 kg.

Compliance: EN 795:2012 Type A
Static strength as per EN 795: 12 kN.
Minimum breaking strength: 15 kN
