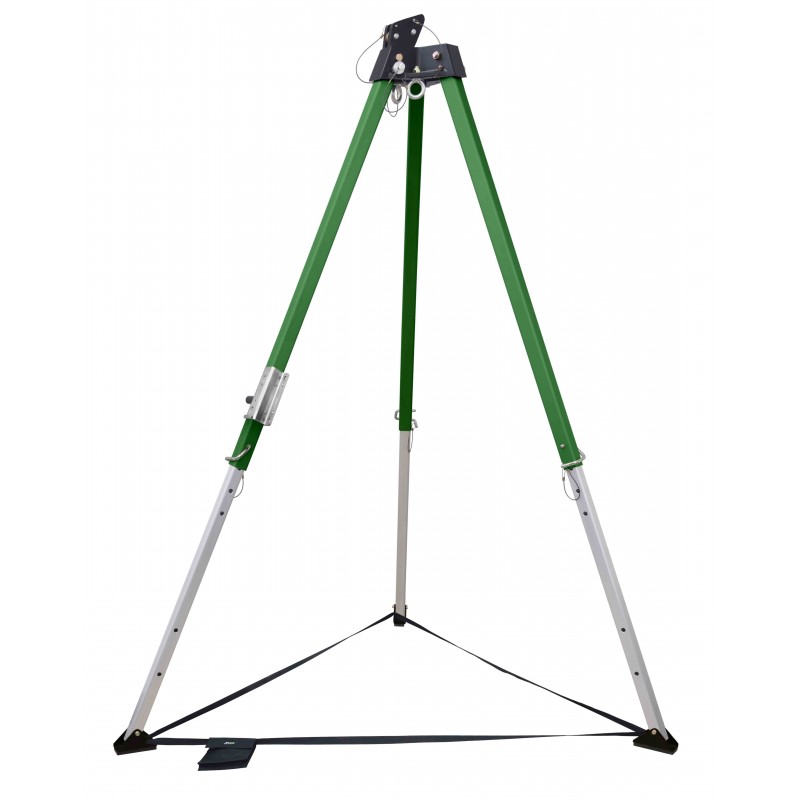

10 ft. Tripod

For access in confined spaces

Adjustable height : from 1.9 m to 2.9 m

Wheelbase :from 1.52 m to 2.05m

Weight :22.3 kg

Maximum Load Capacity : 500 kg under head / 250 kg on leg

Conforms to : EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808

- With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
- Having two auxiliary eye bolts as attachment points.

- Aluminum alloy cast head, legs in aluminium.

- Steel support-shoes provided with rubber sole to increase friction and impart more stability.

- Strength of anchorage point greater than 12 kN

- Every Tripod is provided with inbuilt fixture for attaching our winch FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R.

- Every Tripod is provided with Tripod Bag
